Waste Copper Aluminum Recycling Integrated Metal Chip Compactor

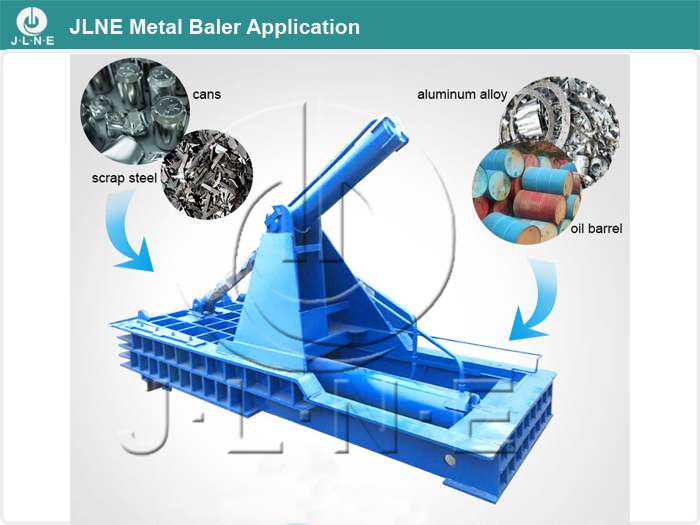

Application of Waste metal shear pressing baler:
Metal baler machine is mainly used in recycling industry and metal smelting industry.It can be used to squeeze all kinds of metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, dismantled automobile shells, waste oil barrels and other metal raw materials into square, cylindrical and other shapes. ,Easy to store, transport and re-use, improve the speed of casting, increase labor efficiency, reduce transportation, manpower, smelting costs.
Features of scrap metal compactor :
1. All machines are hydraulic-driven with alternatives of manual or automatic control .
2. Bale-discharging alternative : turn-out , push-out , forward or manual discharging .
3. No fang bolts needed for installation ; diesel engine can be used as power when electric power is unavailable .
4. There are ten grades of baling force from 63 to 400 tons .
5. The size of baler can be custom made as per customers .
6. Stable and efficient hydraulic driving system, manual handle or PLC full automatic operation optional
7. various bale ejection methods optional, turning over, side pushing out, front pushing out, manual discharging etc.
8. various models for the custom needs: different press forces, box sizes, bale shapes
9. both electrical power and diesel engine power available
Technical Parameter of metal pressing machine:
| Model | Nominal pressure
(kN) | Press box size
(mm) | Bale size
(mm) | Bale density
(t/m3) | Output
(T/8h) | Bale weight
(kg) | Power
(kw) | Weight
(T) |
| YDF-63A | 630 | 1000×600×500 | 200×200 | ≥2.0 | 4~6 | 16~30 | 11 | 4.5 |
| YDF-100A | 1000 | 1000×600×500 | 200×200 | ≥2.0 | 8~12 | 16~30 | 11 | 5.5 |
| YDF-100A | 1000 | 1100×500×500 | 200×500 | ≥2.0 | 6~8 | 40~80 | 11 | 5.5 |
| YDF-130A | 1300 | 1200×700×550 | 250×250 | ≥2.0 | 8~12 | 30~45 | 15 | 6 |
| YDF-130B | 1300 | 1200×800×600 | 300×300 | ≥2.0 | 8~12 | 30~45 | 15 | 6.5 |
| YDF-135A | 1350 | 1400×600×600 | 250×600 | ≥2.0 | 10~16 | 70~90 | 18.5 | 6 |
| YDF-160A | 1600 | 1200×800×550 | 300×300 | ≥2.0 | 8~12 | 50~80 | 18.5 | 7.5 |
| YDF-160B | 1600 | 1600×800×800 | 350×350 | ≥2.0 | 14~18 | 80~140 | 18.5 | 12 |
| YDF-160C | 1600 | 1400×900×700 | 320×320 | ≥2.0 | 16~24 | 80~150 | 22 | 12 |
| YDF-160D | 1600 | 1600×1200×800 | 400×400 | ≥2.0 | 16~30 | 110~170 | 22 | 13.5 |
| YDF-160A | 1600 | 1200×800×550 | 300×300 | ≥2.0 | 10~16 | 70~125 | 22 | 12 |
| YDF-160B | 1600 | 1600×800×800 | 350×350 | ≥2.0 | 16~20 | 70~125 | 22 | 12 |
| YDF-200A | 2000 | 1600×1200×800 | 350×400 | ≥2.0 | 18~28 | 110~170 | 22 | 20 |
| YDF-200B | 2000 | 1800×1400×800 | 450×450 | ≥2.0 | 20~30 | 110~170 | 22 | 20 |
| YDF-200A | 2000 | 1600×1200×800 | 350×400 | ≥2.0 | 20~30 | 110~170 | 30 | 22 |
| YDF-250A | 2500 | 2000×1200×1000 | 450×450 | ≥2.0 | 20~32 | 180~370 | 30 | 20 |
| YDF-250B | 2500 | 2000×1400×900 | 500×500 | ≥2.0 | 20~36 | 180~370 | 30 | 20 |
| YDF-250C | 2500 | 2000×1750×1200 | 500×500 | ≥2.0 | 20~38 | 180~370 | 22×2 | 27 |
| YDF-250A | 2500 | 1600×1200×1000 | 450×450 | ≥2.0 | 28~38 | 160~330 | 30 | 22 |
| YDF-250B | 2500 | 2000×1400×900 | 500×500 | ≥2.0 | 28~38 | 180~370 | 30 | 22 |
| YDF-250C | 2500 | 2000×1750×1200 | 500×500 | ≥2.0 | 28~38 | 180~370 | 22×2 | 27 |
| YDF-315A | 3150 | 2000×1400×1200 | 500×500 | ≥2.0 | 35~40 | 220~360 | 45 | 35 |
| YDF-315B | 3150 | 2500×2000×1200 | 600×600 | ≥2.0 | 35~56 | 450~800 | 45 | 39 |
| YDF-400A | 4000 | 2500×1600×1200 | 600×600 | ≥2.0 | 40~70 | 400~750 | 45×2 | 45 |
| YDF-400B | 4000 | 2800×1800×1200 | 650×650 | ≥2.0 | 50~80 | 650~900 | 45×2 | 50 |
